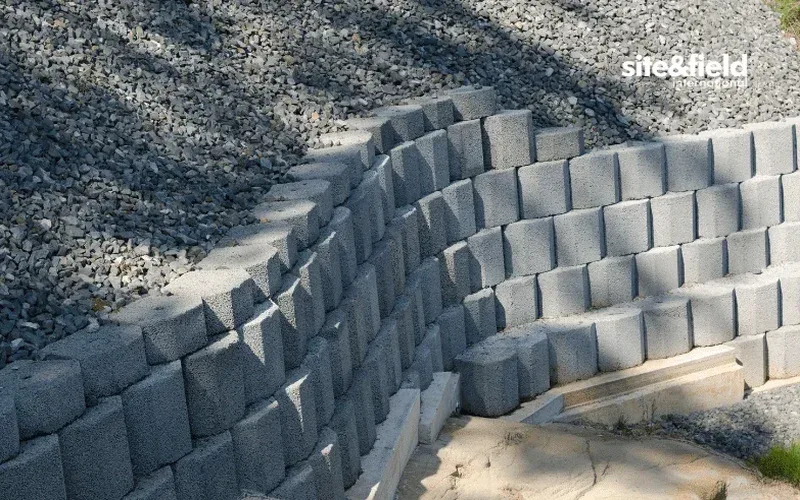

Trois-Rivieres sits on the north shore of the St. Lawrence River, where the geology is dominated by deep deposits of sensitive post-glacial marine clay—the Champlain Sea clay. This material can lose strength when disturbed, a fact that shapes every retaining wall design in the city. Groundwater levels are often high, less than 2.5 m below grade in several sectors near the river, which complicates drainage and lateral earth pressure calculations.
The city’s frost depth typically reaches 1.4 m, a value that directly governs the embedment depth of wall footings and the required thickness of sub-base drainage layers.
We approach each project in Trois-Rivieres with a clear sequence: a CPT test to profile the soft clay without sample disturbance, followed by a detailed bearing capacity check for the footings that will support the wall stem. The 2020 NBCC Table 4.1.8.4 seismic data for the region, with a spectral acceleration Sa(0.2) near 0.35, confirms that designing for pseudo-static earth pressures is a requirement, not an option.
In Trois-Rivieres, the combination of Champlain Sea clay and 1.4 m frost depth makes a wall without a rigid drainage system a guaranteed failure within the first five years.
Methodology applied in Trois-Rivieres
Our technical approach incorporates four essential parameters: (a) the drained shear strength from triaxial testing, which often ranges between 18 and 35 kPa in the Champlain clay layer; (b) the unit weight of the backfill, typically specified as granular borrow with a compacted density of 19.5 to 21 kN/m³; (c) the design groundwater table, set conservatively at 1.0 m below the wall base unless a permanent drainage system is installed; and (d) the interface friction angle between the concrete and the foundation soil, commonly taken as two-thirds of the effective friction angle.
For walls exceeding 3.0 m in retained height, we supplement the geotechnical report with a slope stability analysis of the retained soil mass to confirm global stability under drained and undrained conditions. The ASTM D422 grain-size distribution of the backfill is also verified to prevent clogging of the drainage system over time.
Demonstration video
Critical ground factors in Trois-Rivieres
A common mistake in Trois-Rivieres is treating the Champlain Sea clay as a simple cohesive soil and applying textbook Coulomb parameters without accounting for strain-softening. When a retaining wall is backfilled and the clay beneath the toe is loaded without prior consolidation analysis, the undrained strength can drop from 35 kPa to under 15 kPa within a small displacement range. That triggers a rotational failure with little warning.
Another frequent error is underestimating the hydrostatic pressure behind the wall. Even a 2-meter retained height, combined with a clogged weep hole system, can double the lateral thrust and push the wall beyond its sliding resistance.
The fix lies in proper site investigation—enough CPT soundings to map the clay sensitivity—and a drainage design that includes a continuous granular chimney drain, a perforated collector pipe, and a positive outlet to daylight or a sump. We do not skip these steps, because the cost of a wall collapse in an urban lot in Trois-Rivieres far exceeds the cost of a complete geotechnical study.
Our services
Our retaining wall design service in Trois-Rivieres covers the full geotechnical and structural verification workflow, from site investigation to construction-phase monitoring:
Cantilever and Gravity Wall Design
We calculate bearing capacity, sliding, overturning, and internal structural forces for reinforced concrete cantilever walls and mass gravity walls. The foundation soil parameters are derived from in-situ testing in Trois-Rivieres, not generic tables.
Anchored and Cofferdam Systems
For sites with limited right-of-way or deep excavations near existing structures, we design anchored walls and sheet pile cofferdams. The anchor bond length is verified in the Champlain clay using field pull-out correlations.
Drainage and Frost Protection Design
We specify the granular drainage blanket, filter fabric, weep hole spacing, and frost insulation board thickness required to meet the 1.4 m frost depth in Trois-Rivieres. The drainage system is designed for a 1-in-50-year rainfall event.
Frequently asked questions
What is the typical cost of a retaining wall design in Trois-Rivieres?
The design phase—including site investigation, geotechnical parameter derivation, and structural calculations—ranges from CA$1,320 to CA$5,020. The final fee depends on the wall height, proximity to property lines, and whether a supplementary slope stability analysis is required by the city.
How does the Champlain Sea clay affect the design of retaining walls?
Champlain Sea clay is a sensitive, post-glacial marine deposit with a metastable structure. When undisturbed, its undrained shear strength may appear adequate for bearing. However, excavation, vibration, or excess pore pressure can trigger a collapse of the clay structure, drastically reducing its strength. Our designs in Trois-Rivieres always include a sensitivity analysis and a conservative factor of safety on global stability to account for this behavior.
What is the frost depth requirement for retaining walls in Trois-Rivieres?
According to the NBCC 2020 climatic data for the region, the design frost depth is 1.4 m. This means the bottom of the wall footing and any rigid drainage elements must be placed below this depth, or an engineered insulation system must be installed. We include the frost protection detail in every wall design package.
Do you need a permit from the Ville de Trois-Rivieres for a retaining wall?
Yes. A geotechnical report and stamped structural drawings are required for walls retaining more than 1.5 m of soil, or for any wall supporting a surcharge such as a driveway or a neighboring building. We prepare the technical documents that accompany the permit application, signed by a professional engineer registered with the Ordre des ingénieurs du Québec.
What is the difference between a gravity wall and a cantilever wall?
A gravity wall resists lateral earth pressure through its own self-weight. It is typically built of mass concrete, stone, or gabion baskets and requires a wide base. A cantilever wall uses a reinforced concrete stem and base slab, where the weight of the backfill on the heel helps resist overturning. In Trois-Rivieres, we often recommend cantilever walls for heights over 2.0 m because they use material more efficiently and allow a narrower excavation in the sensitive clay.
